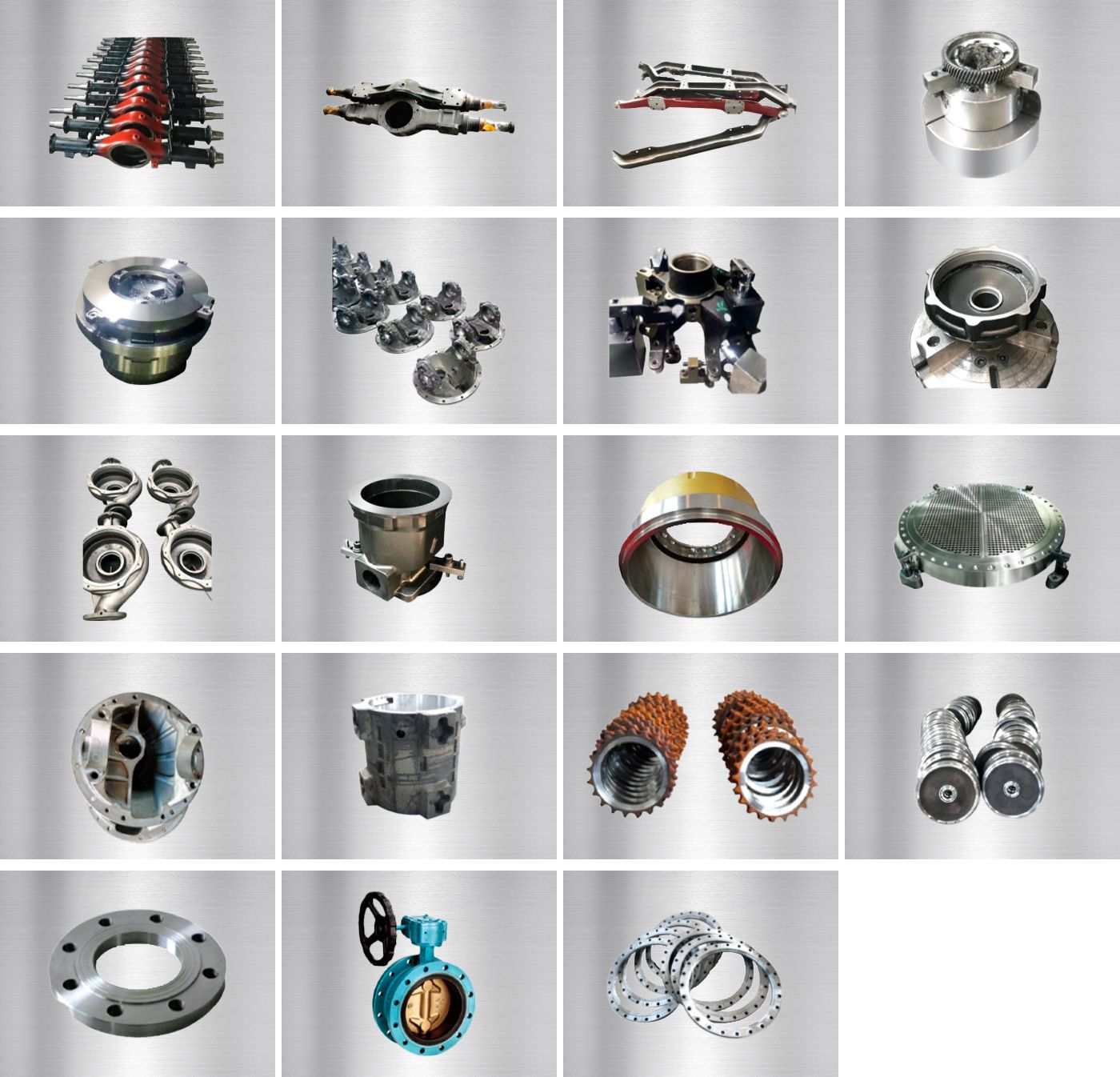

The whole machine adoptsfinite element optimization design,with a reasonable structure,reliable performance,good dynamic rigidity, and stable operation.rail.
The column is a thermally symmetrical structure,and the overall structure with sand sealing improves its vibration resistance.
The workbench guide rail adopts rolling bearings,high-precision double row short cylindrical roller bearings are used in the radial direction,and high-precision thrust ball bearings are used in the axial direction as the rolling guide rail.The axial direction is preloaded,thereby improving the rotation accuracy and bearing capacity of the workbench.
| Name | Units | SCK5117CM | SCK5123CM | SCK5128CM |
|---|---|---|---|---|
| Max.shaving diameter | mm | 1700 | 2300 | 2800 |
| Maximum workpiece height | mm | 1200/1600 | 1200/1600 | 1200/1600 |
| Maximum workpiece weight | T | 5 | 10 | 15 |
| Workbench diameter | mm | 1400 | 2000 | 2400 |
| Workbench speedrange | r/min | 5-130 | 5-100 | 5-90 |
| Tool holderfeed rate | mm/min | Stepless | Stepless | Stepless |
| Right slide stroke(electicknifeholder) | mm | 800 | 800 | 800 |
| Leftsiderstroke(squaresider) | mm | 800 | 800 | 800 |
| Grindinghead spindlespeed | r/min | 2000 | 2000 | 2000 |
| Hoizontal stroke oflefand rightsliders | mm | -140-1030 | -155-1365 | -155-1615 |
| Rapid movement speedofthetoololder | mm/min | 3000 | 3000 | 3000 |
| Rotation angle oflefandnghtliders | Positive and Negative | 30° | 30° | 30° |
| The maximum cross-sectional Areaof the cutter bar | mm | 40×40 | 40×40 | 40×40 |
| The maximum cross-sectional area ofthecutter bar | mm/min | 500 | 500 | 500 |
| Main moto power | kw | 30/37 | 30/37 | 30/37 |
| Machine weight | T(Approx) | 22 | 29 | 37 |
