System selection of Germany Siemens.
Imported spindle,large torque,high speed,fully meet the boring and milling and drilling processing.
Support various gantry accessories.For example,right-angle milling head,universal milling head, manipulator knife library,etc.
Slide pillow with large cross section stick plastic guide rail,surrounded by the structure.

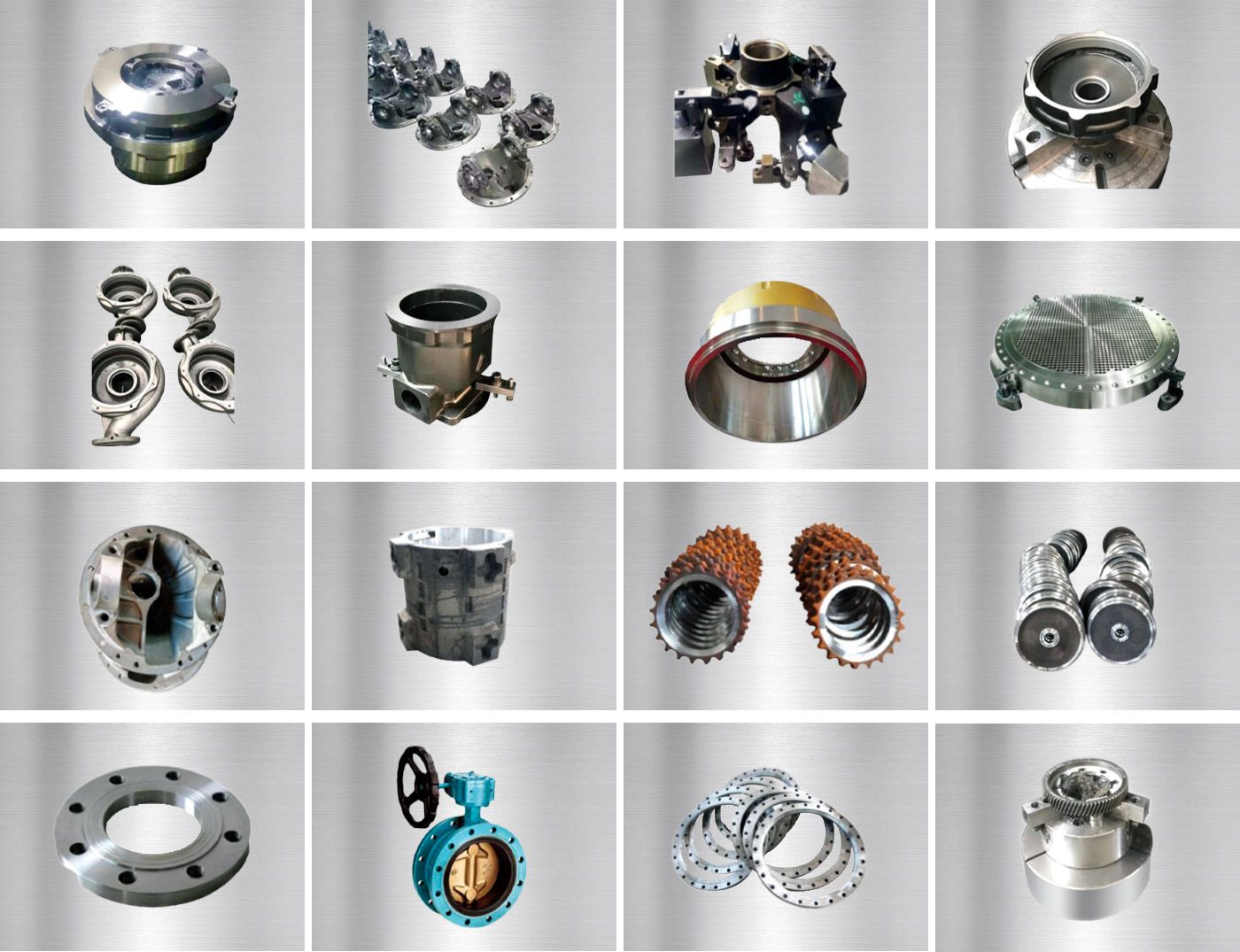

Suitable for:civil aviation,automobile,energy,information,mold and other industries parts processing. It has the characteristics of high speed,high recision,high flexibility,environmental protection and so on.
| Name | Units | GMC3560 | GMC6042 |
|---|---|---|---|
| Size of worktable (length x widt) | mm | 2500x6000 | 3000x6000 |
| The spacing between the two oumns | mm | 3500 | 4260 |
| Processing range Xaxis | mm | 6000 | 6600 |
| Yaxis of proesing range | mm | 3500 | 4800 |
| Processing range Z axis | mm | 1100 | 1500 |
| Maximum distance from spindle end face to table | mm | 1020 | 2000 |
| Minimum distance between spindle end face and table | mm | 480 | 500 |
| The spindle type | mm | BT50-190 | BT50-210 |
| Xaxis repeat postioning | mm | 0.025/300 | 0.025/300 |
| The Y axis is positioned repeatedly | mm | 0.015/300 | 0.015/300 |
| Z-axis repeated postioning | mm | 0.01 /300 | 0.01/300 |
| Machine Dimensions(Length ×Width x Height) | mm | 15100×5400×5300 | 15250x7520x7400 |
| Host weight | T | Approx.52.8 | Approx. 98.5 |
